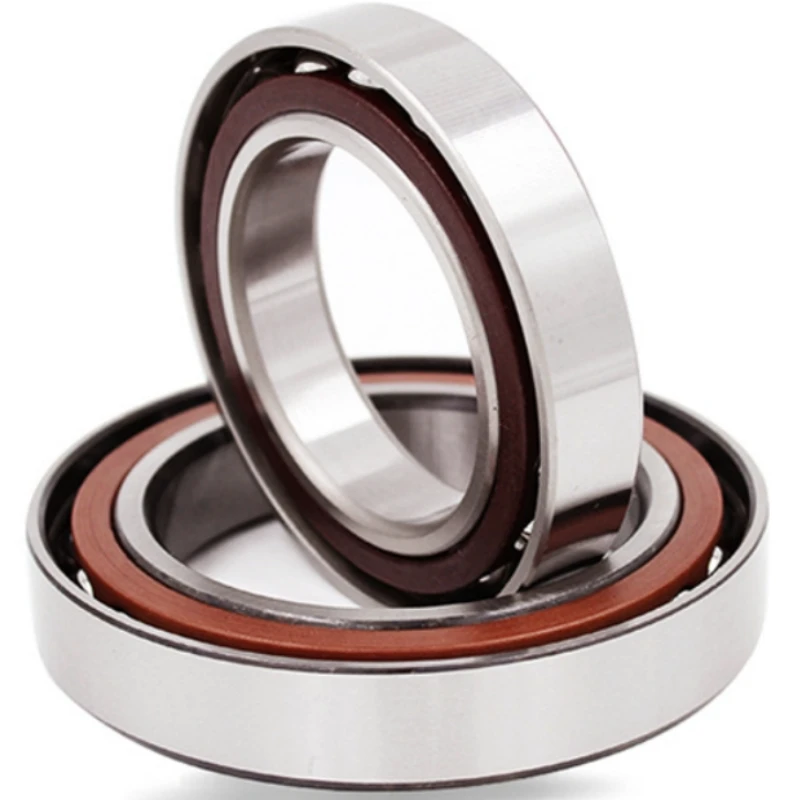

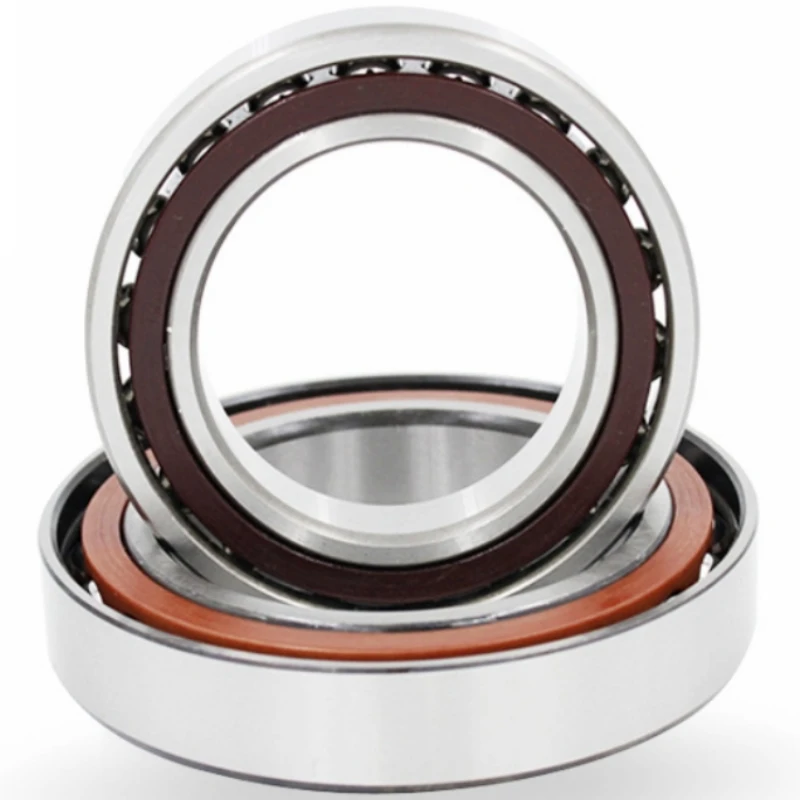

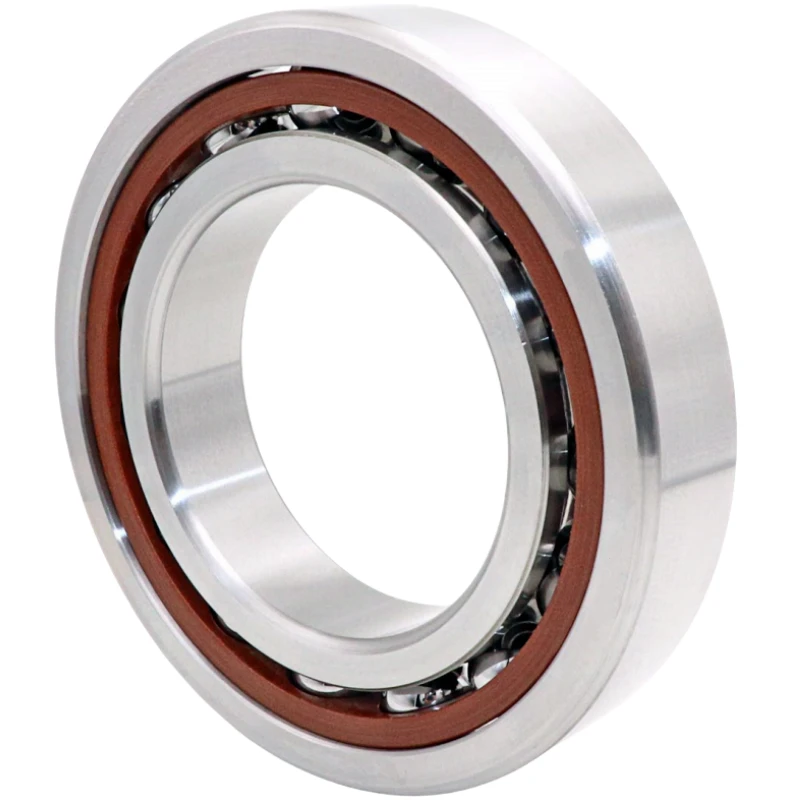

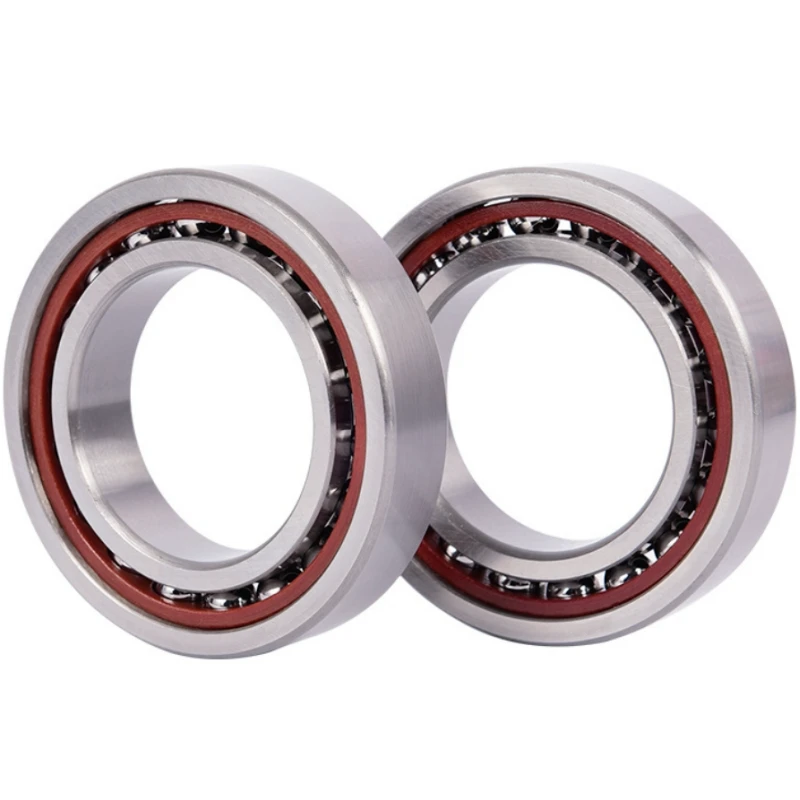

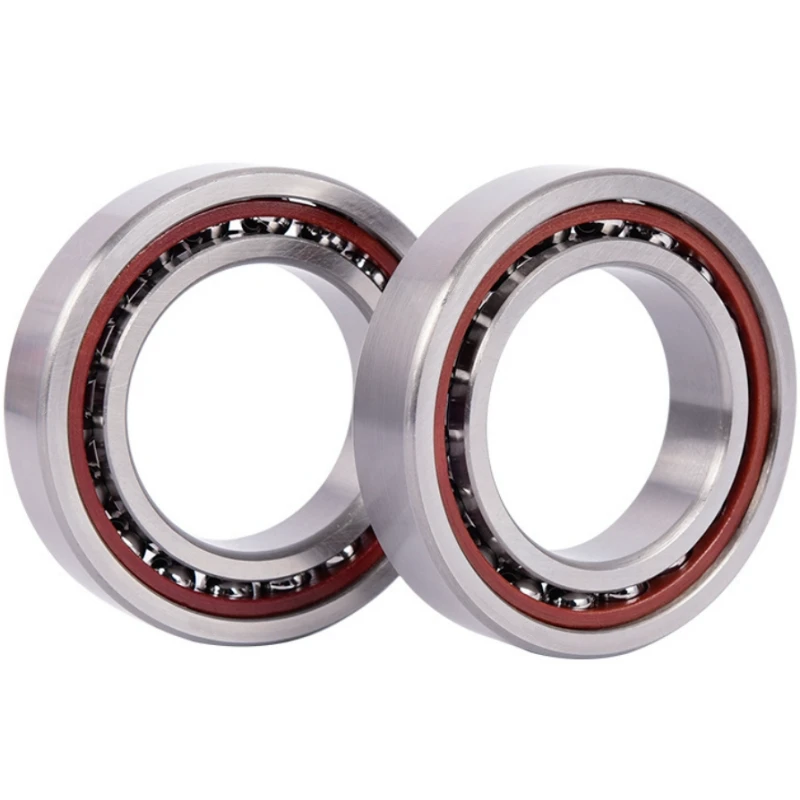

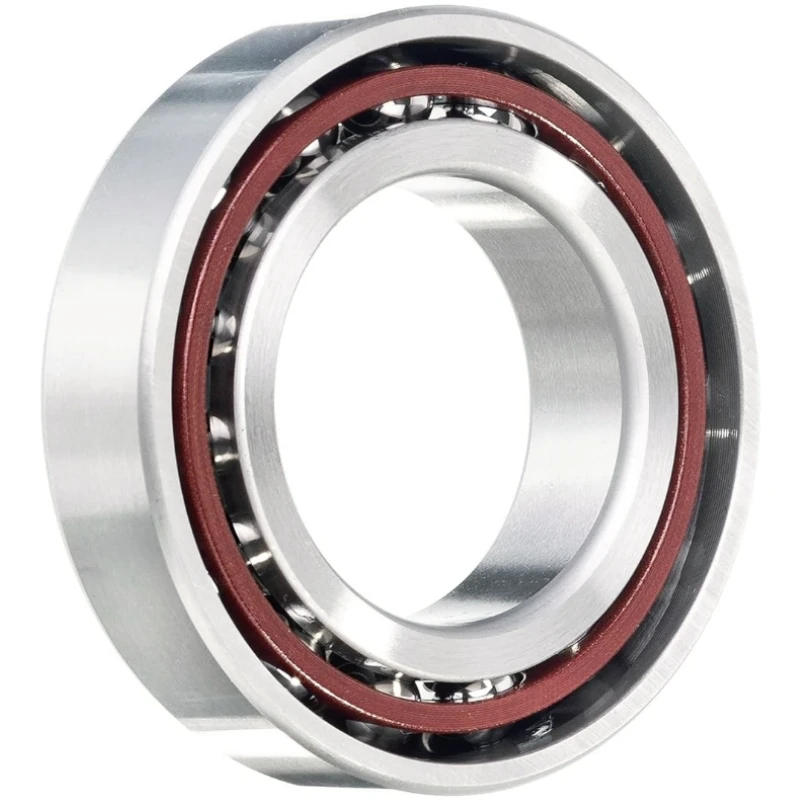

Angular Contact Ball Bearings

Angular contact ball bearings can withstand both radial and axial loads simultaneously. Angular contact ball bearings can work at higher speeds. The larger the contact angle, the higher the axial load-bearing capacity.

Phone : +86 15069523366

Whatsapp : +86 15069523366

Email : Kevin@dfn-bearing.com

PRODUCT SPECIFICATION

PRODUCTION AND WAREHOUSING

PACKAGING AND TRANSPORTATION

◉ PRODUCT SPECIFICATION

Bearing No.	Dimensions(mm)			Weight
Bearing No.	d	D	T	(kg)
7000	10	26	8	0.021
7001	12	28	8	0.024
7002	15	32	9	0.035
7003	17	35	10	0.045
7004	20	42	12	0.079
7005	25	47	12	0.091
7006	30	55	13	0.133
7007	35	62	14	0.17
7008	40	68	15	0.21
7009	45	75	16	0.26
7010	50	80	16	0.29
7200	10	30	9	0.031
7201	12	32	10	0.038
7202	15	35	11	0.048
7203	17	40	12	0.07
7204	20	47	14	0.112
7205	25	52	15	0.135
7206	30	62	16	0.208
7207	35	72	17	0.295
7208	40	80	18	0.382
7209	45	85	19	0.43
7210	50	90	20	0.485
7300	10	35	11	0.054
7301	12	37	12	0.065
7302	15	42	13	0.088
7303	17	47	14	0.12
7304	20	52	15	0.15
7305	25	62	17	0.243
7306	30	72	19	0.362
7307	35	80	21	0.475
7308	40	90	23	0.657
7309	45	100	25	0.875
7310	50	110	27	1.14
7406	30	90	23	0.96
7407	35	100	25	1.14
7408	40	110	27	1.4
7409	45	120	29	1.8
7410	50	130	31	2.25
3200	10	30	14.3	0.051
3201	12	32	15.9	0.063
3202	15	35	15.9	0.072
3203	17	40	17.5	0.096
3204	20	47	20.6	0.17
3205	25	52	20.6	0.19
3206	30	62	23.8	0.32
3207	35	72	27	0.48
3208	40	80	30.2	0.65
3209	45	85	30.2	0.71
3210	50	90	30.2	0.76
3301	12	37	19	0.098
3302	15	42	19	0.13
3303	17	47	22.2	0.192
3304	20	52	22.2	0.23
3305	25	62	25.4	0.369
3306	30	72	30.2	0.585
3307	35	80	34.9	0.816
3308	40	90	36.5	1.07
3309	45	100	39.7	1.42
3310	50	110	44.4	1.95
4200	10	30	14	0.057
4201	12	32	14	0.062
4202	15	35	14	0.071
4203	17	40	16	0.106
4204	20	47	18	0.165
4205	25	52	18	0.189
4206	30	62	20	0.298
4207	35	72	23	0.46
4208	40	80	23	0.558
4209	45	85	23	0.605
4210	50	90	23	0.651
4301	12	37	17	0.092
4302	15	42	17	0.123
4303	17	47	19	0.171
4304	20	52	21	0.227
4305	25	62	24	0.365
4306	30	72	27	0.542
4307	35	80	31	0.752
4308	40	90	33	1.01
4309	45	100	36	1.35
4310	50	110	40	1.8
